- Available for modular pan type and welding type
- Shielding effectiveness more than 100dB from 14KHz to 40GHz
- Customized size and color is available
- Easily dismantled and reinstalled to other location
- Easy to install
Product Description

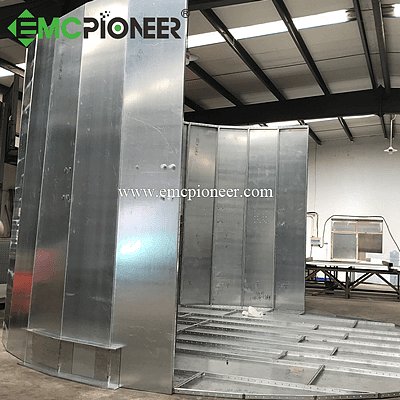

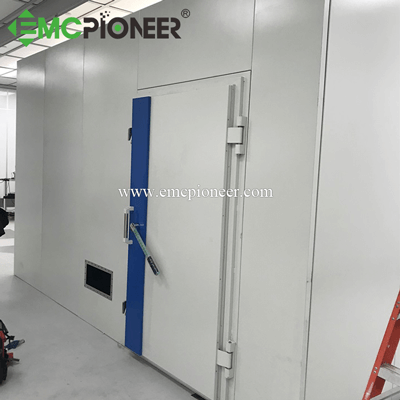

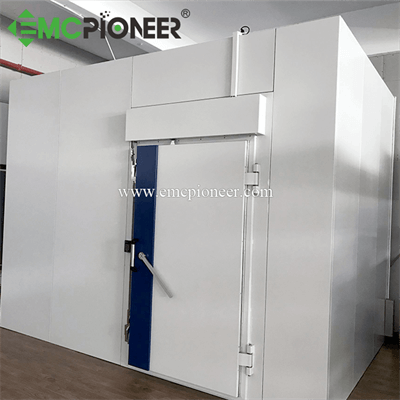

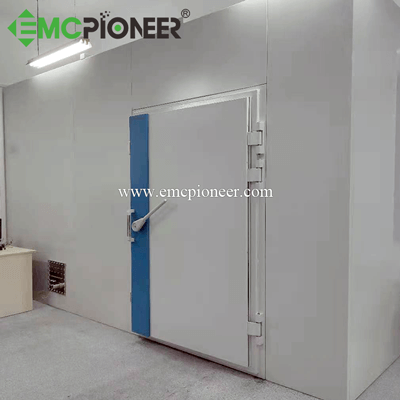

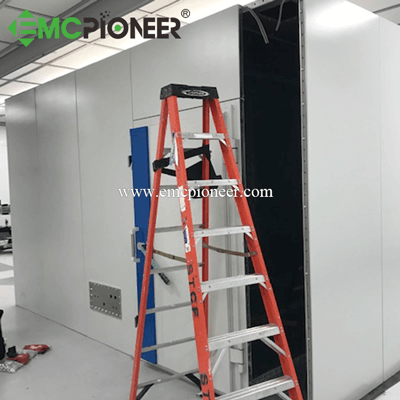

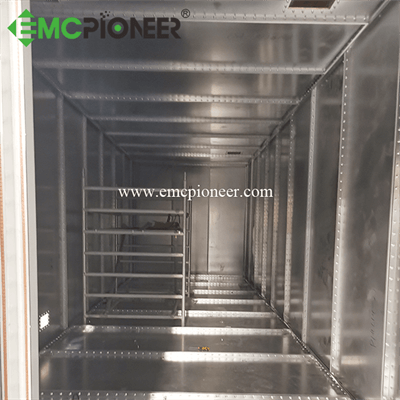

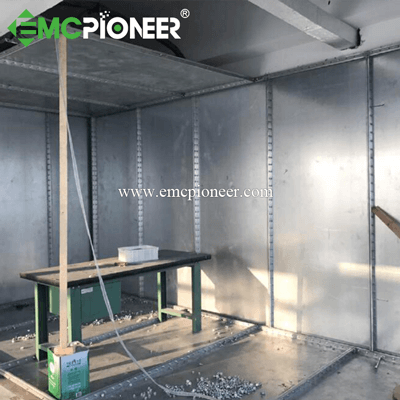

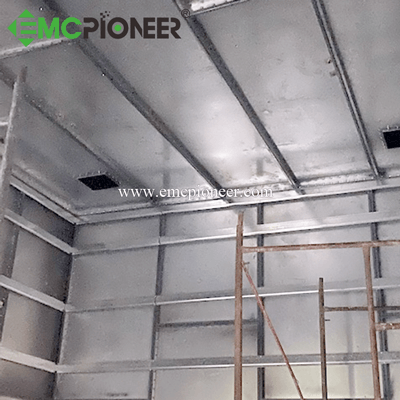

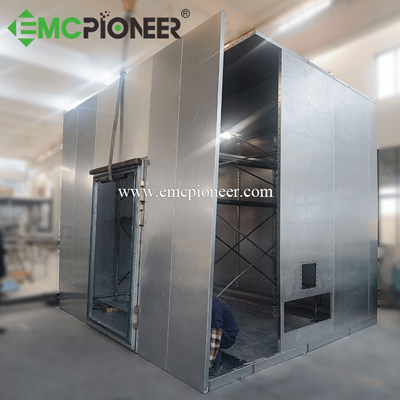

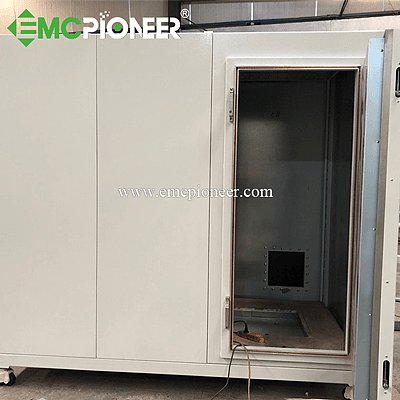

The RF shielding room is made by 2mm galvanized steels. Between the RF shielding panels, knitted wire mesh was installed to help shielding. This construction is based on best practices to provide the highest RF shielding performance for applications. EMCPIONEER supply shielding enclosure in different dimensions with very high attenuation values, up to 100 dB in a frequency range from 14KHz to 40GHz.
Additionally, the design requires no welding, cutting or sawing, allowing for quick and clean field installation. All panels allow for easy handling and entry via standard building doors. The shielded room is easy modification and maintenance.
Applications for RF shielded room:
• RF shield data center
• Control shielded rooms of Test
• Semi Anechoic chambers
• Fully Anechoic chambers
